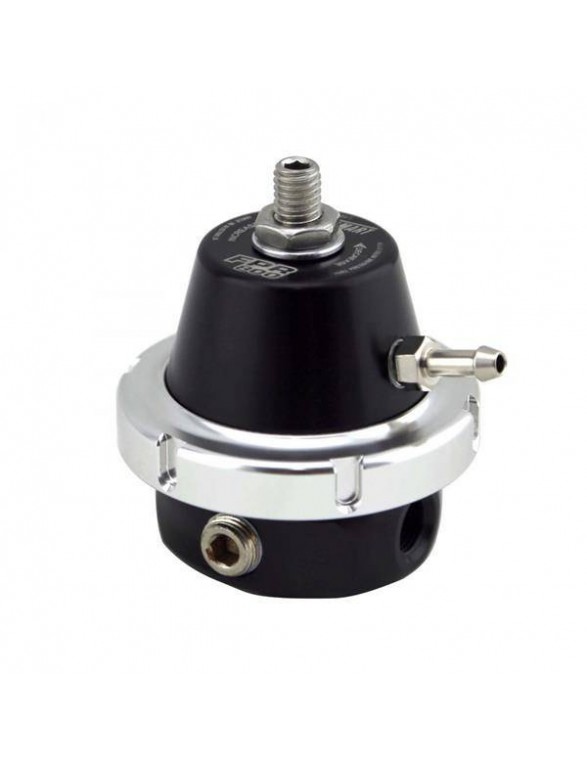

Turbosmart Fuel Pressure Regulator FPR-800 TS-0401-1102

Turbosmart's newest high performance EFI fuel pressure regulator is smaller, lighter and better! Now with two 1/8 "NPT inlet ports, one 1/8" NPT return port and 1/8 "clock port. 2-6 Bar pressure regulation, 1: 1 ratio, premium diaphragm and stainless steel valve + seat allow EVERY type of fuel, including E85, is suitable for engines with fuel systems up to 800hp. The FPR has a non-directional adjustment tendency, so no matter where the fuel comes from, it adjusts the same. mounting clamp, hose nipple and clock port plug EFI fuel regulator 3 ports 1/8 "NPT Clock port 1/8" NPT Can adjust up to 800HP fuel flow Manifold pressure ratio 1: 1 without load loss Pressure range 2-6 Bar Internal components stainless steel for maximum integrity and reliability Suitable for all types of fuel Operation from -35ºC to + 200ºC Diaphragm MILSPEC Support and securing clip included Pressure port 1/16 NPT with fitting supplied Manufacture valid, assembled and approved internally at the premises of Turbosmart & nbsp
